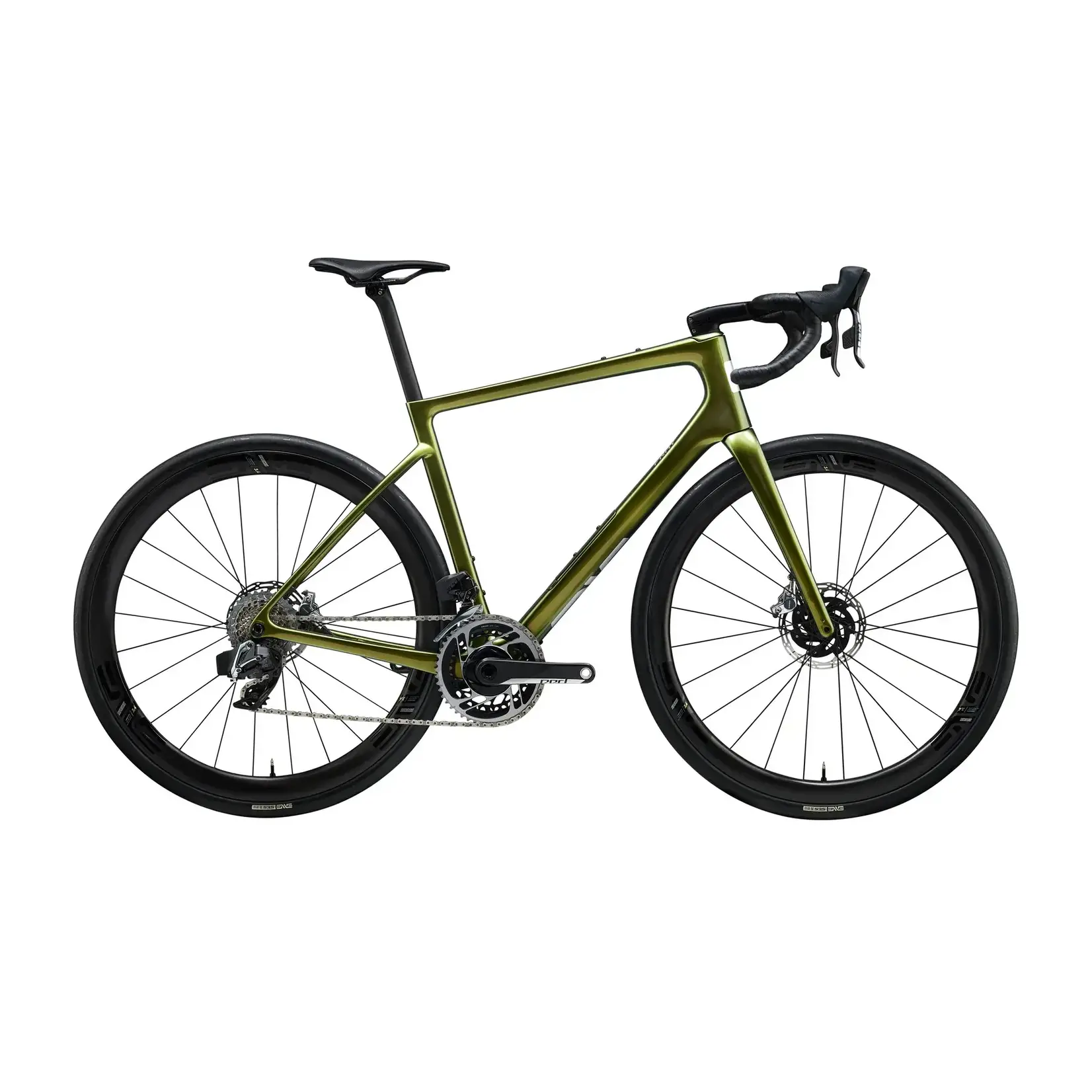

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.
Available in store
CloseAn ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
**Current build is SRAM Red, but can be customized to your choice of group.***
Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible |
Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
Fork Rake | 55, 51, 47, 43 |
Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, |
56cm/47, 58cm/47, 60cm/43 | |
Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |
Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
Headset Bearing | 1.5″ IS52 Upper and Lower |
Seat Post Diameter | ENVE Aero |
BB Type | T47 Inboard Bearing |
Brake Mount | Flat Mount |
Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
Minimum Tire Size | 27mm |
Optimal Tire Size | 31mm - 35mm |
Maximum Listed Tire Clearance 1x | 40mm |
Maximum Listed Tire Clearance 2x | 38mm |
In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
Frame Routing | Internal |
Waterbottle Capacity | 3 |
Top Tube Mounts | Yes |
Fender Compatible | Yes |
Wheel Size | 700c |
